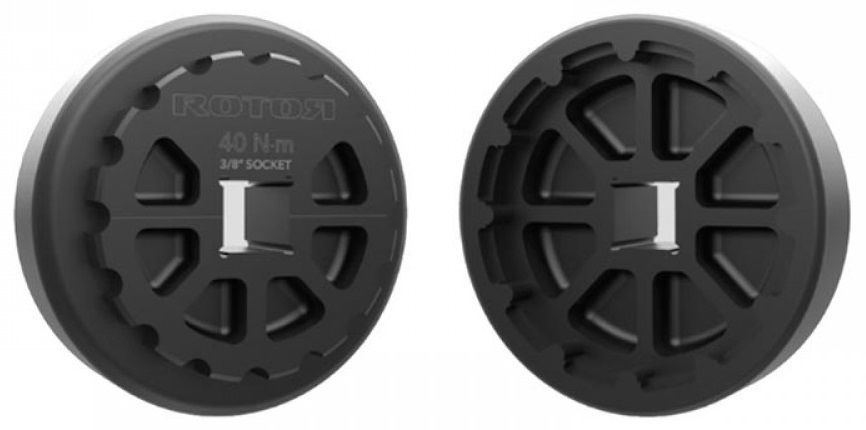

Tool to fit ROTOR BSA30 and UBB Bottom Brackets

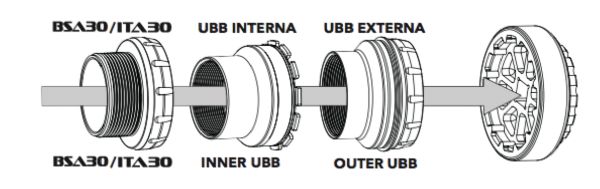

Tool for mounting the following Rotor bottom brackets:

• UBB 4630 386 (two inner UBB cups)
• UBB 4630 BBright (DS outer UBB cup, NDS inner UBB cup)
• UBB 4630 PF30 (two outer UBB cups)
• BSA30
• ITA30
• T47 Internal 24mm and 30mm
• T47 External 30mm only

Spiders from Rotor cranks cannot be mounted/dismounted with this tool. The tool is made of fibre-reinforced plastic. It is recommended to tighten the bearing cups to 40 Nm. From the outside, the tool can be used either with a 3/8" torque wrench or with a Shimano® bearing wrench
